FIG. 06 — Square Tube Swager
Tube Processing / Swaging

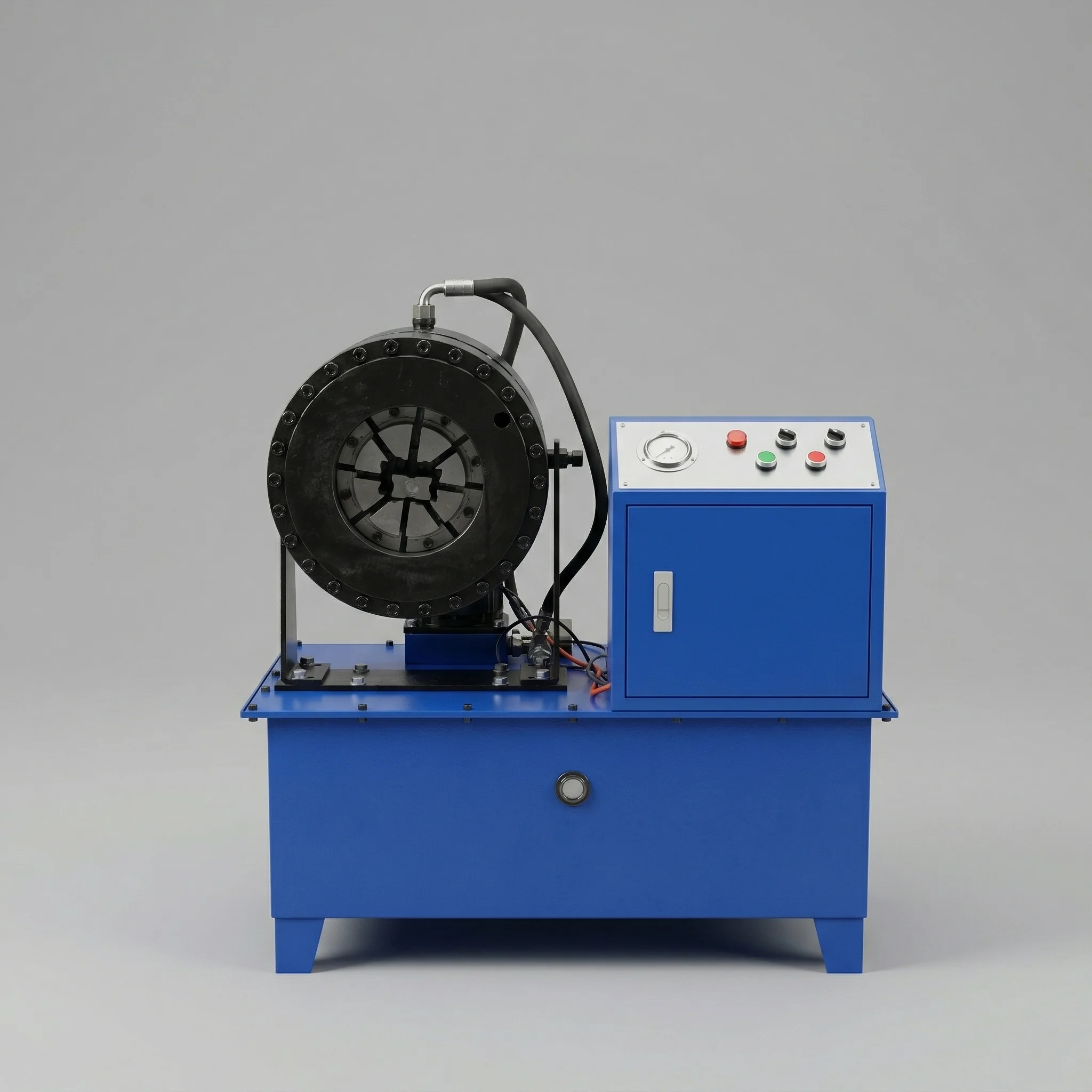

Square Tube Swaging Machine
Professional square tube end forming equipment for square and rectangular tube processing. Unique die design enables uniform swaging. Widely used in furniture, shelving, and display rack industries.
- Dedicated square tube die, uniform forming
- Four-way synchronous swaging, high precision
- Suitable for 20×20 to 100×100mm square tubes
- Quick die change system, high efficiency
Technical Specifications
Mechanical Properties
Size Range
20×20-100×100mm
Swaging Ratio
1:1.25
Swaging Force
80ton
Processing Speed
3-10m/min
Motor Power
11kW
Process Parameters
Swaging Direction
4-way Sync
Die Specification
Standard/Custom
Feed Method
Hydraulic
Positioning Accuracy
±0.2mm
Operation Mode
Semi-auto
Environment & Electrical
Machine Weight
1800kg
Dimensions
2200×1000×1400mm
Noise Level
≤78dB
Power Supply
380V 3-phase
Operating Temp
0-45°C
