FIG. 05 — Thick-Wall Swager
Pipe Processing / Swaging

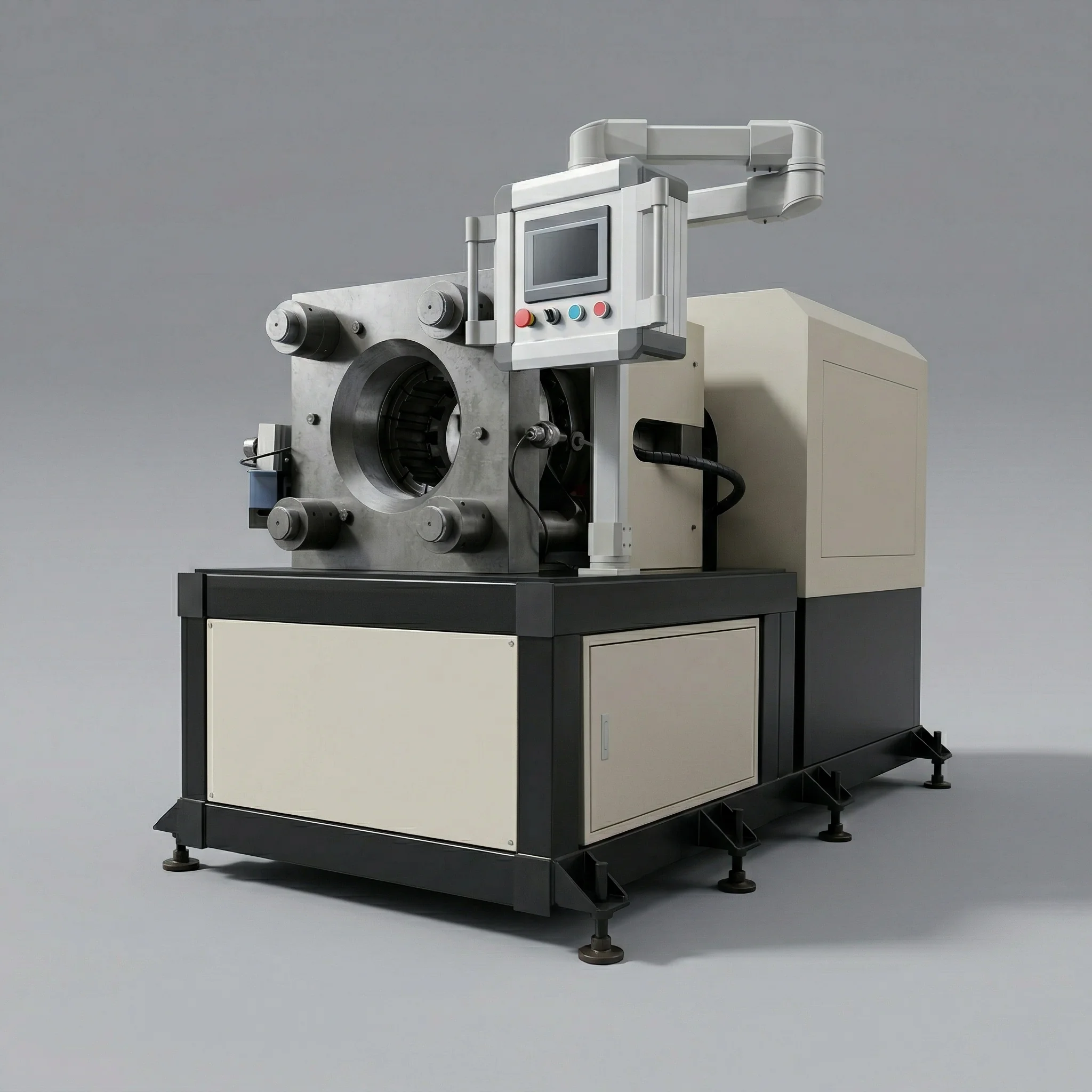

Thick-Wall Pipe Swaging Machine
Heavy-duty equipment designed for thick-walled pipe end forming. High-rigidity frame structure and powerful hydraulic system enable precision swaging of pipes with larger wall thickness. Widely used in petrochemical and heavy machinery industries.
- High-rigidity frame structure, excellent stability
- Powerful hydraulic system, swaging force up to 300 tons
- Suitable for thick-walled pipes, max wall thickness 20mm
- Precision guide system, high processing accuracy
Technical Specifications
Mechanical Properties
Pipe Diameter Range
φ50-200mm
Max Wall Thickness
20mm
Swaging Force
300ton
Processing Speed
1-5m/min
Hydraulic Motor
37kW
Process Parameters
Hydraulic Pressure
31.5MPa
Die Specification
Customizable
Control System
PLC Auto
Positioning Accuracy
±0.1mm
Operation Mode
Auto
Environment & Electrical
Machine Weight
5500kg
Dimensions
4000×2000×2200mm
Noise Level
≤85dB
Power Supply
380V 3-phase
Operating Temp
-10-50°C
